Fouga CM.170 Magister
« on: November 12, 2014, 07:13:10 AM »

Fouga CM.170 Magister

The Fouga CM.170 Magister is a 1950s French two-seat jet trainer. The related CM.175 Zéphyr was a carrier-capable version for the French Navy.

Design and Development

In 1948, Fouga designed a jet-powered primary trainer called CM.130 for the French Air Force (Armée de l'Air, AdA) to replace piston-engined Morane-Saulnier MS.475 aircraft. When AdA found the aircraft lacking in power from the two Turbomeca Palas turbojets, Fouga enlarged the basic design and used the more powerful Turbomeca Marboré engine. The distinctive V-tail of the new CM.170 Magister originated on the CM.8 glider Fouga was using to experiment with jet engines. In December 1950, AdA ordered three prototypes, with the first aircraft flying on 23 July 1952. A pre-production batch of 10 were ordered in June 1953 followed by the first production order for 95 aircraft on 13 January 1954. Fouga built a new assembly plant at Toulouse-Blagnac to produce the aircraft. The aircraft entered service with AdA in 1956.

The Fouga Magister 170R was designed in 1949 by Robert Castello and Pierre Mauboussin. The first prototype flew on 23 July 1952 and the first one sold to AdA flew for the first time in February 1956.

Due to different industrial mergers, the aircraft has been known as the "Fouga CM.170 Magister", "Potez (Fouga) CM.170 Magister", Sud Aviation(Fouga) CM.170 Magister" and "Aérospatiale (Fouga) CM.170 Magister" depending on where and when they were built.

The French Navy's Aéronavale adopted a derivative of the Magister, the CM.175 Zéphyr, as a basic trainer for deck-landing training and carrier operations. These were preceded by two "proof of concept" prototypes designated the CM.170M Magister, which made their first flights in 1956/57.

An improved version of the Magister designated the CM.170-2 Magister was produced from 1960. It used a more powerful Turbomeca Marboré IV engine. Production of the Magister stopped in France in 1962 but it continued to be built in Finland up to 1967.

The development of the aircraft came to an end when the French Air Force selected the Alpha Jet as their new jet trainer.

After retirement, a number of Magisters were bought by private-owner pilots in the USA and are operated in the experimental category.

Operational History

The first export customer was Germany who ordered 62 aircraft from Fouga, and Flugzeug Union Süd (a consortium of Heinkel and Messerschmitt) license-built a further 188 aircraft. In addition the CM.170 was built under license by Valmet in Finland, and Israel Aircraft Industries in Israel, with a total of 929 built. Of these 286 were completed under license.

Israel

The Israeli Air Force operated a license-manufactured version, the IAI Tzukit. While principally a trainer, it was used in the 1967 Six Day War by 147 Squadron as a close support aircraft, attacking targets on the Egyptian front during the first day of the war, when Israel's more capable combat aircraft were deployed on Operation Focus against Arab air bases. They were then deployed against Jordanian forces, including armour, on the West Bank. The Magister proved effective at the close-support mission albeit with heavy casualties, with six being lost.

El Salvador

9 former Israeli and 3 French Magisters were acquired by the Salvadoran Air Force and used as both trainers and ground attack aircraft in the Salvadoran Civil War using bombs and nose-mounted 7.62mm machine guns. None are recorded as being lost to enemy fire, but only five were in operational condition by the end of the war.

Finland

In 1958-1959, Finland purchased 18 Fouga Magisters from France. At the same time they also obtained a manufacturing license. The Finnish aircraft manufacturer Valmet later built 62 Fouga aircraft between 1958–67. The French built aircraft carried the designations FM-1...-18 and the Finnish built FM-21...-82. The aircraft served as a jet trainer in the Finnish Air Force between 1958–1988 until superseded by BAe Hawks. A total of 21 Fouga Magisters were destroyed in accidents, six with fatal outcome. The usual Finnish Air Force nickname for the aircraft was Kukkopilli (Ocarina) because of the unique sound of the Turbomeca Marboré turbojet.

Belgium

The Belgian Air Force operated 50 Magisters as primary trainers. The aerobatic team The Red Devils also used them as display aircraft. A small number of Magisters remained in use until September 2007, as flight maintenance aircraft for senior officers. The Belgian Air Force was the last country that used Magisters for full duty.

Katanga

During the Congo Crisis, the pro-secessionist Katangese Air Force (FAK) purchased nine Magisters from France. Confirmed operational by July 1961, they were apparently piloted by white mercenaries responsible for eliminating several ONUC aircraft later that September, including a Douglas DC-4. Only one example - abandoned by its crew at Kolwezi due to mechanical problems - survived the conflict.

Ireland

The Irish Air Corps operated six Fouga Magisters from 1975 to 1999, four of which equipped the Silver Swallows display team.

Brazil

The Força Aérea Brasileira (FAB) used the Fouga Magister in their aerobatic display team, the Esquadrilha da Fumaça, from 1968 until 1975. Their aircraft were numbered T-24 in the trainer series of FAB type designations.

Variants

CM.160

A proposed lightweight version of the CM.170R for operation from grass or makeshift runways.

CM.170 Magister

three prototypes and 10 pre-production aircraft.

CM.170M Magister

two prototypes for the French Aéronavale

CM.170R

Initial production version of the Magister.

CM.170-1 Magister

first production version with Turbomeca Marboré II engines; 761 were built including 188 in West Germany, 62 in Finland and 50 in Israel.

CM.170-2 Magister

uprated Marboré VI engines with 4.7 kN (1,055 lbf) thrust each; 137 built.

CM.171 Makalu

enlarged airframe, Turbomeca Gabizo engines with 10.8 kN (2,422 lbf) thrust each, the only prototype lost in an accident on 20 March 1957

CM.173 Super Magister/ Potez 94

Marboré Super VI engines with 5.1 kN (1,143 lbf) thrust each and ejection seats; one prototype built.

CM.175 Zéphyr

A shipboard trainer for the Aéronavale, with strengthened undercarriage, catapult attachments and arrestor hook; 30 built.

Potez CM.191

4-seat version of the Magister; two prototypes built.

IAI Tzukitor

Israeli Air Force version, updated with new cockpit, composite materialsFouga 90/90ADevelopment based on the CM.170 with Turbomeca Astafan engines with 7.6 kN (1,715 lbf) thrust each, reshaped canopy for better visibility, and upgraded avionics. One prototype built. Proposed version 90A was equipped with a 790 kp Turbomeca Astafan engine; both versions failed to attract orders.

Specifications (CM.170)

General characteristics

Crew: Two
Length: 10.06 m (33 ft 0 in)
Wingspan: 12.15 m (39 ft 10 in)
Height: 2.80 m (9 ft 2 in)
Wing area: 17.30 m² (186.1 ft²)
Empty weight: 2,150 kg (4,740 lb)
Loaded weight: 2,850 kg (6,280 lb)
Max. takeoff weight: 3,200 kg (7,055 lb)
Powerplant: 2 × Turbomeca Marboré IIA turbojets, 3.92 kN (880 lbf) each

Performance

Maximum speed: 715 km/h (386 knots, 444 mph) at 9,000 m (30,000 ft)
Range: 925 km (500 nmi, 575 mi)
Service ceiling: 11,000 m (36,080 ft)
Rate of climb: 17 m/s (3,345 ft/min)
Wing loading: 165 kg/m² (34 lb/ft²)
Thrust/weight: 0.28

Armament

2x 7.5 mm or 7.62 mm machine guns, 200 rounds/gun
Up to 140 kg (310 lb) of weapons on two underwing hardpoints, including 50 kg (110 lb) bombs, unguided rockets, and Nord Aviation SS.11 anti-tank missiles.

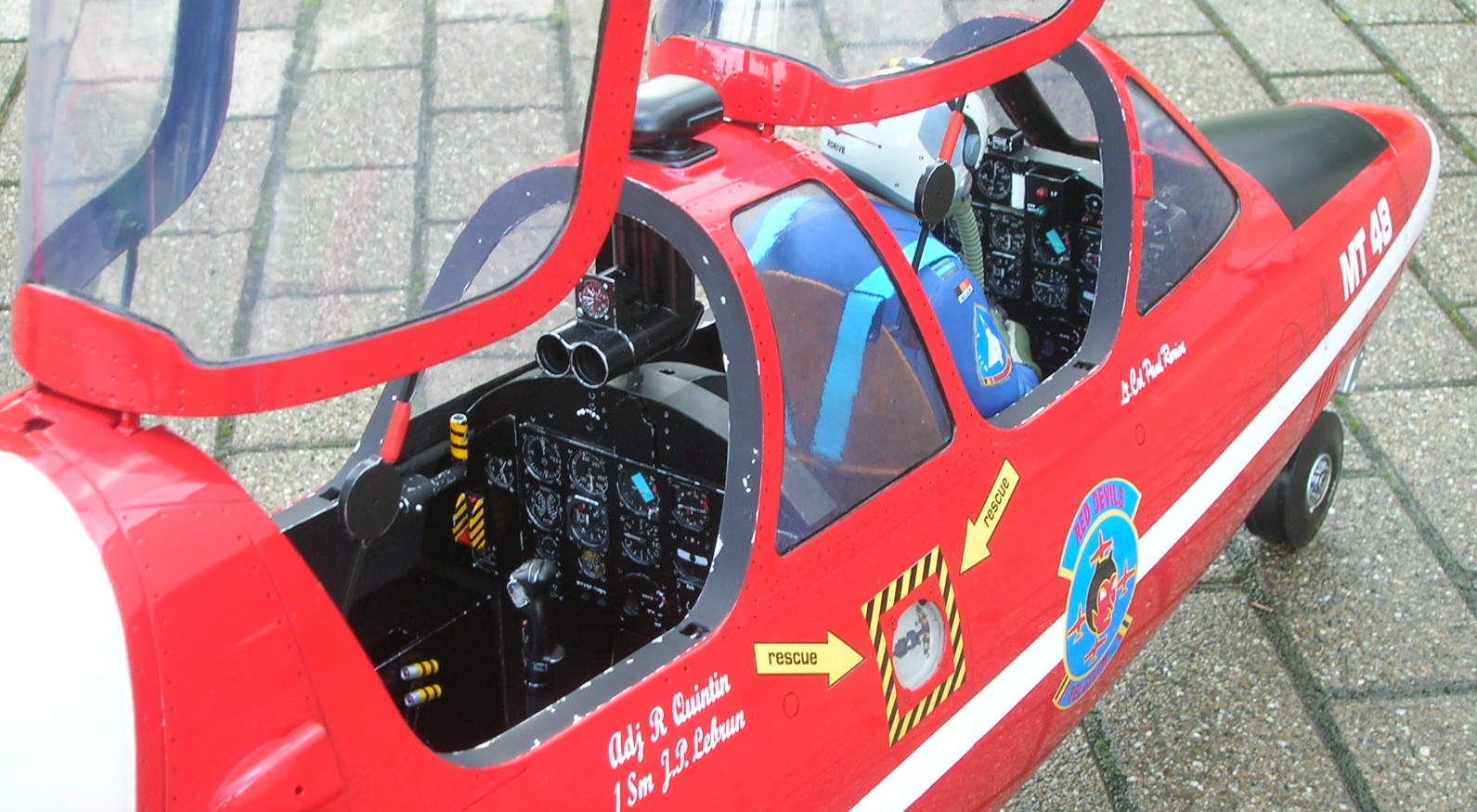

Pics/Drawings









































I wanted to include as much info and as many pics as possible to give you guys an idea of how this aircraft looks and would operate.

If anyone needs more info just post here and I'll get to you guys as soon as I can.

Thanks


Sincerely,

PvF
Logged
“German humor is no laughing matter”

HotelAlpha

  • F.A.C #7
  • Modder
  • member
  • Offline Offline
  • Posts: 1875
  • Tactical dominance is key
Re: Fouga CM.170 Magister
« Reply #1 on: November 16, 2014, 03:57:47 PM »

I'd say that it is a fine little jet, I would definitely  push for it to be in game. A MS 760 Paris would also be cool!

The Magister could be a strike plane as well, with some rockets or bombs. Who knows?
